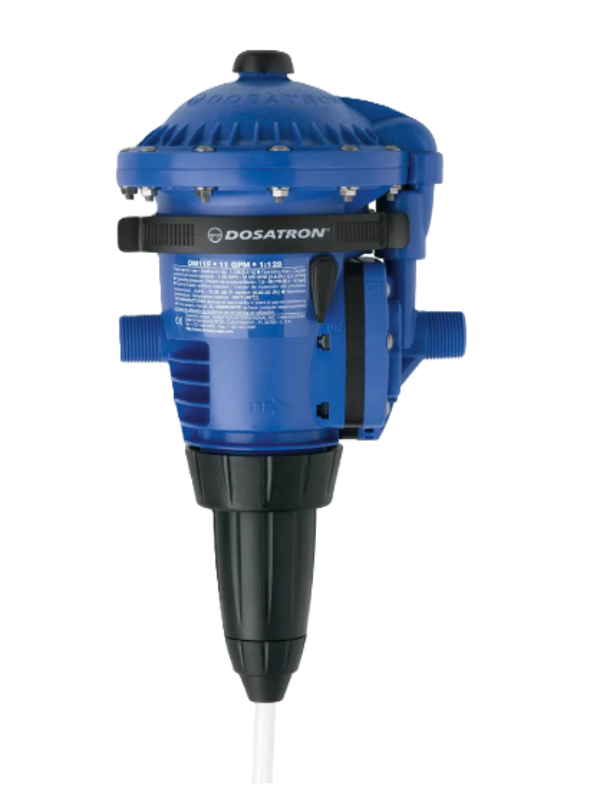

Dosatron® DM11F Diaphragm Medicator
CA$689.00
FREE shipping
Dosatron® DM11F Diaphragm Medicator, 1:128
1.5-85 PSI, 0.02-11 GPM
The Dosatron DM11F Diaphragm Injector was designed for use in poor water quality areas due to sugar sand, iron, or hard water. Ideal for use with day-old chicks and weaners, this injector was built for low water flow use. Features a piston-free hydraulic motor with a highly chemical resistant housing.
Applications: Medicating, Sanitizing, Chlorinating, Vaccinating, Water Treatments, Supplements
Features/Specifications
- No Metal Parts
- Max Flow: 11 GPM
- Min Flow: 0.02GPM
- Injection Percents: 0.8%
- Injection Ratios: 1:128 Fixed
- Pressure Range: 1.5 to 85 PSI
- Housing Material: Polypropylene (Standard Blue)
- Connections: 3/4" NPT
- Maximum Temperature: 104 F
- Dimensions: 16" x 7"
- Weight: 5 lbs
- Larger Capacity: Less strain on motor parts allowing for a longer life
Dosatron DM11F Diaphragm Injector Includes: Mounting Bracket, Suction Tube, Strainer, Weighted Strainer & Quick Start Guide
